CLINOMETER
Instruments for measuring angles of slope or elevation of an object with respect to gravity; also known as “pitch & roll indicator”. Inclines and declines are measured in shipping, giving the list in still water and roll in rough waters.

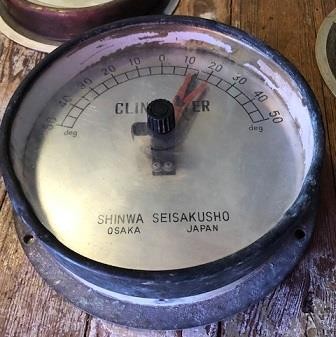

alvaged brass inclinometer by
Shinwa Seisakusho, Osaka Japan
appx 8″ od face, 9 1/4″ od back plate
Upper side diameter of this CLINOMETER is approx 6 inches and Bottom diameter of this CLINOMETER is approx 7.5 inches. Height is 2 inches.
Clinometer pendulum type 150mm
Brand Barigo
Pendulum type, oil demped
150mm dia backflange
125mm dia white dial
Range 40-0-40 degr
CLINOMETER TUBE
These tiltmeter devices are used for indicating angle using a bent tube with either a ball or a bubble. In the ball type, the ball moves to the lowest point of the curve under the effect gravity. In the bubble type, the bent tube is inverted and the bubble will move to the highest point. Also known as a slope indicator, an angle gauge, a clinometer and a gradiometer, these devices are used in applications to warn an operator of the working angle of a machine for safety purposes – and correct operation of the inclinometer is critical.

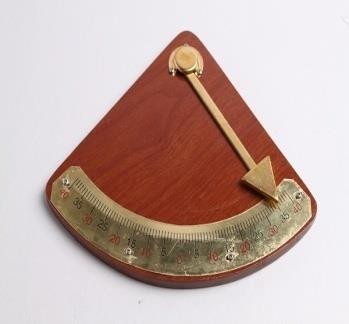

CLINOMETER WOODEN
salvaged inclinometer
brass degree arc
appx 14″ t x 19″ w:
