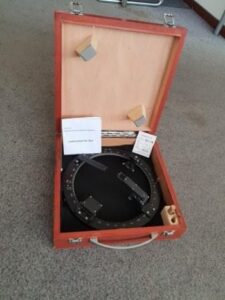

Azimth Circle 247mm
Azimth Circle is made for marine A-level standard magnetic compass. It is designed and manufactured according to the marine industry standard. Made with brass, powder painted, packed in wooden box.

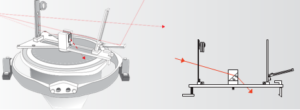

The azitmuth circle is mounted on the repeater compass. By means of a prism and reflection mirror, sunlight is projected in the form of a line on to the compass card through a slit, thus making it possible to observe the sun.
Inside diameter: 247mm
Outside diameter: 260mm
Weight: 1.6kg
AZIMTH CIRCLE
Reflection Arrangement Type CUTUBE: length 1200 mm to be cut by yard Type FIXTUBE: ready adjusted in length at delivery Diameter of tube: 140 mm Material: PVC Extension length of mirror head: 150 mm Turning range of mirror head: 360° Swivel range of reflection mirror, black and white360 °
AZIMTH CIRCLE – ANCHUS
BEARINGSIGHTCP190
- Hinged wire and slitvane for exact bearings.
- Index marks for reading the relative bearings on the gradual scale of the repeater compass.
- Glass prism and index wire to read compass bearings on the gradual scale of the repeater compass.
- Mirror for astronomical bearings.
- Two hinged tinted filters(black) for direct sun observation.
- The bearing sight comes in a protective case for safe-keeping.
TANDARD BEARING SIGHT
- Index marks for reading the relative bearings on the gradual scale of the repeater compass.
- High reading accuracy due to internal optical path.
- Mirror for astronomical bearings.
- Hinged tinted filter(black) for direct sun observation.
- Level indicator for horizontal alignment of the bearing repeater.
- Solid design without wires.
- The bearing sight is delivered in a protective case for safe-keeping.
TELESCOPIC BEARING SIGHT
- Bearing sight with seven times optical magnification.
- Ocular with dioptre adjustment.
- High quality night optics.
- Direct reflecting of compass card into field of view for direct reading of bearing.
- Mirror for astronomical bearings and seven times power magnification.
- Three hinged tinted filters(yellow, grey, black).
- Level indicator for horizontal alignment of the bearing repeater.
- Taking of bearings without use of optics.
- Solid design without wires.
- The bearing sight is delivered in a protective case for safe-keeping.
